Definewa Modular

1.000 - 15.000 Lumen

New ways of illumination

Definewa solar lamp is a self-sufficient and off-grid lamp for lighting streets,
parking lots, parks and green areas, bus stops, company premises, supermarkets and much more. In the housing of the lamp, the control electronics and the battery are housed water- and dust-tight (IP 66). This guarantees trouble-free and maintenance-free operation. The power required to operate the lamp is generated via a powerful solar module and stored in a battery.

When dusk falls, the lamp switches on automatically and the LED draws the required amount of energy from the
battery the required amount of energy to operate the lamp. The lamp is switched off in the same way after the onset of dawn. The control electronics monitor all programmed functions of the lamp by means of its „eye“, the infrared sensor. This individual adaptation of the mode of operation to the needs and necessities of lighting provides a very high availability of the lamp.

Product details

01 | Patented design for high wind speeds up to 50m/s

02 | Sensor controlled, intelligent lamp management with MPPT power controller

03 | high quality branded LED with a luminous intensity of > 160 lumen/watt

04 | LiFePO4 (Lithium Iron Phosphate) battery with battery management system

Product details

01 | Patented design for high wind speeds up to 50m/s

02 | Sensor controlled, intelligent lamp management with MPPT power controller

03 | high quality branded LED with a luminous intensity of > 160 lumen/watt

04 | LiFePO4 (Lithium Iron Phosphate) battery with battery management system

Special features

Solar Modul

Monocrystalline high-performance module with an efficiency of more than 20%.

LED Modul

Powerful Bridgelux LED, luminous intensity up to 10000 Lumen.

Battery

Durable LiFePO4 energy storage. Free of toxic and polluting pollutants.

Control unit

MPPT controller with intelligent programming of luminous intensity and time as well. Control of the solar module and battery management.

Charging time

Approx. 6 hours with sunshine. Depending on the inclination and orientation of the lamp

Light duration

Light duration without intermediate charge up to 24 hours (max mode) or up to 60 hours (dimming mode)

Certificates

CE | RoHS | IP66

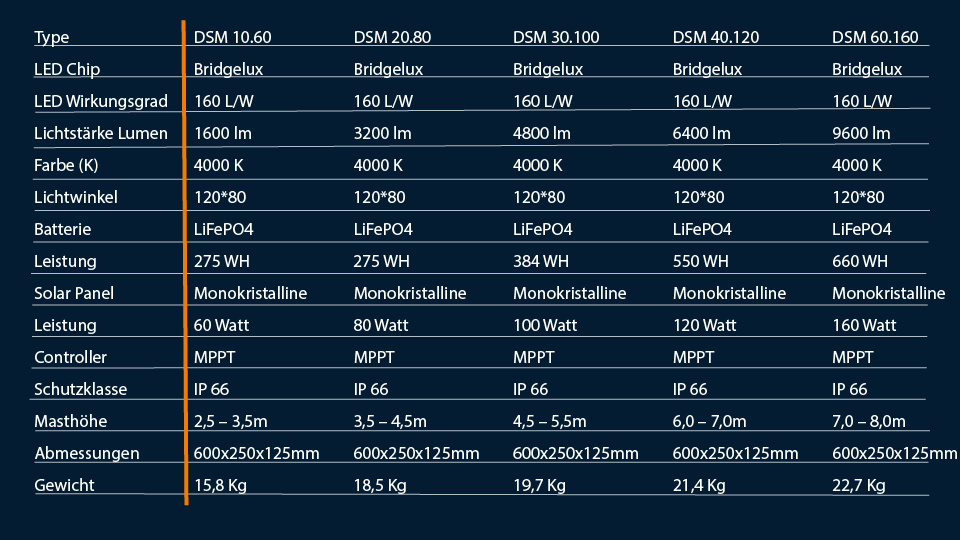

TECHNICAL DATA „DEFINEWA MODULAR“

technische-daten-definewa-compact
